1011A 6X 2000Y Precision Hunting Scope Rangefinder OEM with Red OLED Display & Ballistic Calculator - AITE Optical
1011A 6X 2000Y Precision Hunting Scope Rangefinder OEM with Red OLED Display & Ballistic Calculator - AITE Optical
- • Optical Engine: 6X Magnification | 2500Y Max Reflective Range | 1100Y Building Range | 300Y Pin Lock
- • Display Optics: Adjustable 6-Level Red OLED reticle with ≥50% light transmittance for twilight legibility.
- • Ballistic Calculator: Built-in holdover calculation for hunting - elevation and drop data without external apps.
- • Tournament Switch: External physical slope switch for USGA / PGA rule compliance.
- • Mounting & Protection: Integrated N52 magnetic cart mount | Sealed IP54 splash/dust-proof chassis.
- • Power Options: Rechargeable 310mAh lithium core (USB-C) or standard CR2 battery configuration.
- • OEM Fulfillment: 20-unit MOQ tier ($60-$70 USD) | Full FDA Class 1, CE, FCC, RoHS, UKCA, KC compliance.
Included Accessories & Packaging:
1011A Laser Rangefinder Hardware Overview
The AITE 1011A is a compact optical rangefinder designed for private-label golf and hunting electronics brands in US, European, and East Asian markets. Equipped with a 6X optical system and high-transmittance lenses (≥50%), it delivers distance readouts up to 2,500 yards on reflective targets and 300 yards on pin flagsticks.
Internal optics feature a 6-level intensity Red OLED module for low-light dusk or early morning rounds. A built-in ballistic calculator works out holdover for hunting shots, and a physical toggle switch on the outer shell disables slope distance calculations during sanctioned tournament play. An internal N52 magnet provides secure mounting to golf cart frames.
Direct factory shipments start at 20 units ($60-$70 wholesale tier). Customization options cover custom shell pantone painting, laser logo engraving, custom display reticles, and branded gift box packaging.
| Specifications - Model 1011A | |||
| High Reflective Object | 5-2500 Yards | Diopter Adjust Distance | ±5° |
| Building Range | 5-1100 Yards | Display | OLED |
| Range to Flag | 5-300 Yards | Working Temp. | -20°C ~ 50°C |
| Objective Lens Diameter | 20mm | Accuracy | ±1M(Y) ~ ±0.2% |
| Magnification | 6X | Battery | CR2-3V Battery / Rechargeable |
| Field of View | 7° | Net Weight | 173g ± 5g |
| Exit Pupil Diameter | 3mm | Dimensions | 97.5 × 77 × 39.8 mm |
| Exit Pupil Distance | 17mm | Waterproof | IP54 |
| High Light Transmittance | ≥50% | M/Y Unit Change | Yes |
Factory Patents & Certification Compliance
Direct Manufacturer Profile & Contact

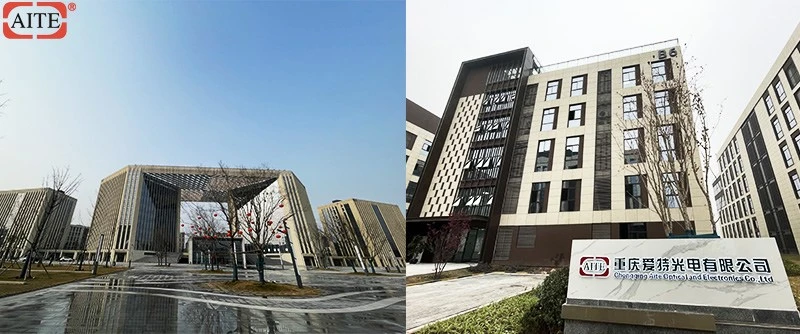

Chongqing Aite Optical and Electronics Co., Ltd.
Established in 2002 in Chongqing, China. Primary optics manufacturer specializing in laser golf rangefinders, hunting optics, and launch monitors. Operating a 5,000 m² plant with a 400,000-unit annual output capacity and ISO 9001:2015 quality management certification.
Factory Address: Building 24 (B6), No. 105 Semiconductor Industrial Park, Yunhan Road, Beibei Dist, Chongqing, China
Global Sales Email: fredhu@aitegd.com | Tel / WhatsApp: +86-18623652325
Official Portal: https://www.aiterangefinder.com
| Specifications - Model 1011A | |||
| High Reflective Object | 5–2500 Yards | Diopter Adjust Distance | ±5° |
| Building Range | 5–1200 Yards | Display | OLED |
| Range to Flag | 5–300 Yards | Working Temp. | -20°C ~ 50°C |
| Objective Lens Diameter | 20mm | Accuracy | ±1M(Y) ~ ±0.2% |
| Magnification | 6X | Battery | CR2-3V Battery |
| Field of View | 7° | Net Weight | 173g ± 5g |
| Exit Pupil Diameter | 3mm | Dimensions | 97.5 × 77 × 39.8 mm |
| Exit Pupil Distance | 17mm | Waterproof | IP54 |
| High Light Transmittance | ≥50% | M/Y Unit Change | Yes |
