1003G 6X 1200Y Long Range Hunting Distance Meter Factory with Scan Mode & Fog Mode - AITE Optical
Product Brand: AITE
Measure Range: 5--1200Y
Color: Customized
Send Inquiry
Product Introduction

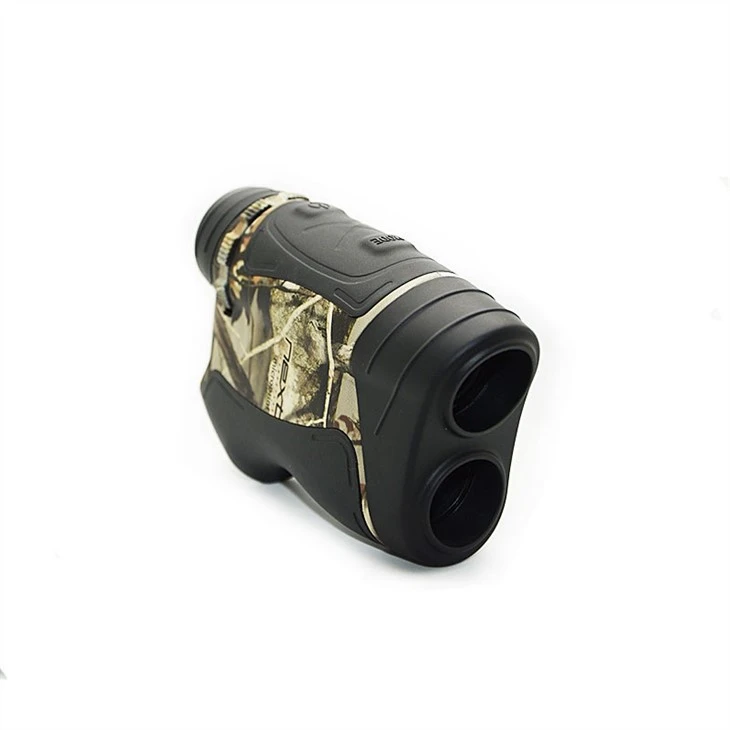

Model 1003G (6X 1200Y) Ballistic Hunting Optics & OEM Scope
- • Ballistic Angle Engine: Real-time incline/decline solver calculating exact line-of-sight and compensated horizontal distance for steep-terrain hunting.
- • Optoelectronic Stack: 6X magnification with fully multi-coated 20mm objective lens engineered for high contrast in low-light forest environments.
- • Ranging Envelope: 5 to 1200 yards reflective target envelope with sub-yard accuracy (±0.5Y) and continuous scan tracking.
- • Field-Proofing: IP54 splash-resistant and dust-tight chassis with tactile non-slip outer casing.
- • ISO 9001 Manufacturing: Low 20-unit OEM tier ($40–$50 USD) | Manufactured under ISO 9001:2015 quality standards with FDA Class 1, CE, FCC, RoHS, UKCA, KC compliance.
Technical & Sourcing FAQ: Model 1003G
Q1: How does the internal incline sensor improve aiming accuracy for archery and rifle hunting?
A: Projectile drop is governed solely by the horizontal distance component. The 1003G measures the physical angle of elevation or depression and instantly outputs true horizontal distance, ensuring correct holdover or pin placement from tree stands.
Q2: What quality assurance protocols are conducted under your ISO 9001 framework?
A: Certified under ISO 9001:2015, our production facility subjects each 1003G unit to 100% optical axis co-axiality calibration, 905nm laser diode output power verification, and environmental seal testing before final dispatch.
Q3: What private-label customization options are provided for 20-unit initial orders?
A: At the 20-unit wholesale threshold ($40–$50 price bracket), options include custom laser logo marking on the housing, custom pantone/camo shell finishes, branded reticle UI layouts, and private-label retail packaging.
Q4: What is the typical turnaround time from sample approval to commercial delivery?
A: Custom OEM prototype samples complete within 7–12 business days. Commercial bulk production orders average 20–30 days following sample sign-off and deposit receipt.
| Specifications - Model 1003G (6X 1200Y) | |||
| Product Designation | 1003G | Display Technology | High-Contrast Transflective LCD |
| Distance Capability | 5–1200 Yards | Ballistic Modes | Compensated Horizontal / Line of Sight |
| Optical Zoom | 6X Optics | Measurement Precision | ±0.5 Yards (±0.2%) |
| Objective Lens | 20mm | Laser Emitter Class | 905nm Class 1 Eye-Safe |
| Ingress Protection | IP54 Dust & Splash Proof | Power Supply | CR2-3V Lithium Cell / Rechargeable |
| Quality Certification | ISO 9001:2015 System | Commercial Terms | $40 – $50 USD (20 Units MOQ) |
| Global Approvals | FDA Class 1, CE, FCC, RoHS, UKCA, KC | ||
Factory Patents & Certification Compliance
ISO 9001 Certified Source Optics Facility & Assembly Workshop
Chongqing Aite Optical & Electronics Co., Ltd.
Direct manufacturer established in 2002. Operating a 5,000 m² ISO 9001:2015 certified plant with cleanroom optical assembly, laser calibration darkrooms, and quality testing lines (400,000 units/year capacity).
Factory Address: Building 24 (B6), No. 105 Semiconductor Industrial Park, Beibei Dist, Chongqing, China
Sales Inquiry: fredhu@aitegd.com | WhatsApp: +86-18623652325
