1004H OLED Golf Rangefinder OEM/ODM Manufacturer (MOQ 50) - AITE Optical
MOQ: 20
Display: OLED display in both Red, or LCD display in red or blue
Max Range: 1200Y
Pin Seeker: 350Y
Function: SCAN / Pin Seeker / Slope Adjusted Distance / Vibrate when measure any distance once, twice for find the pin / LED indicator for PGA legal / Waterproof Design / Rechargeable Battery /Covered with Rubber Grips
Send Inquiry
Product Introduction

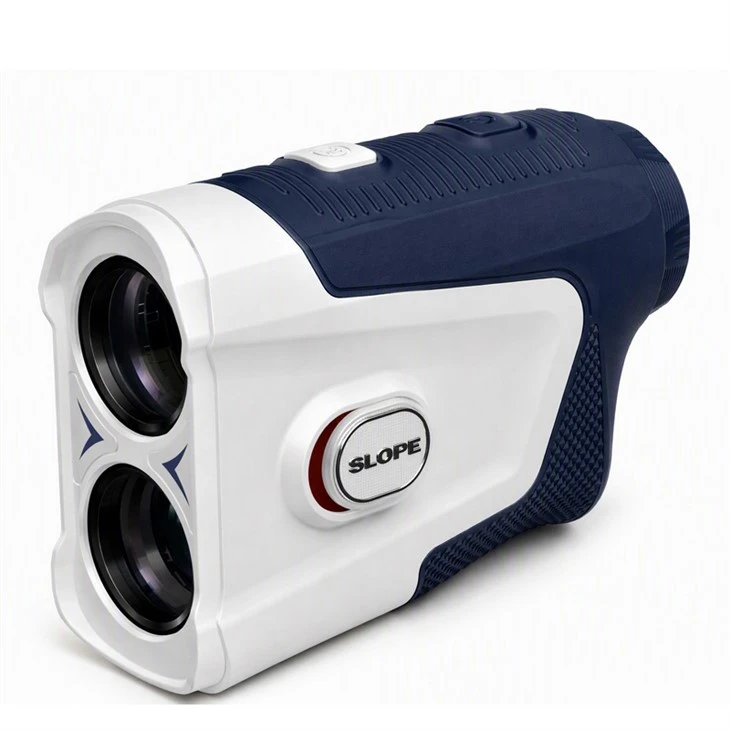

1004H Dual-OLED Laser Golf Rangefinder (OEM/ODM Ready)
Integrated N52 Cart Magnet | Physical USGA Slope Lock | 1200Y Optical Baseline | USB-C Li-ion

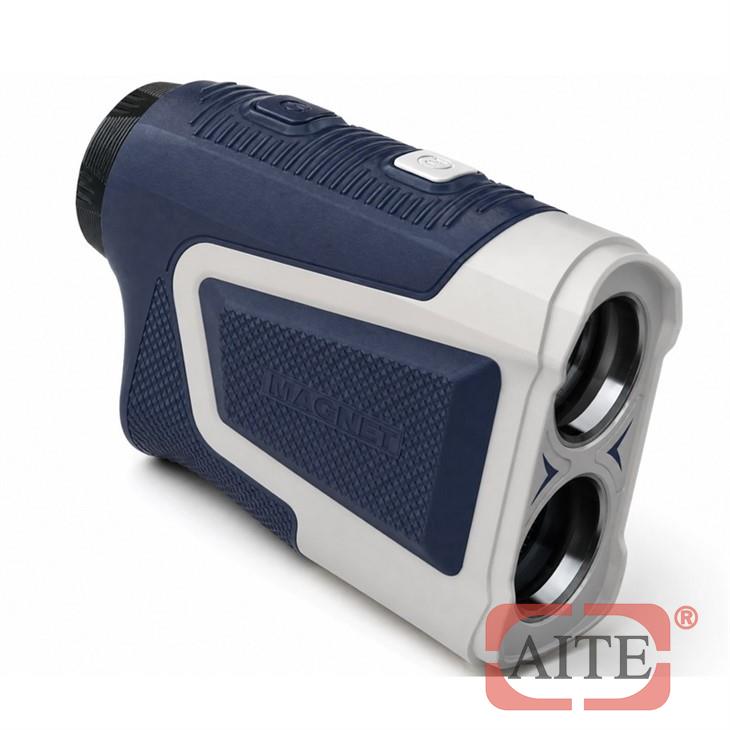

Cart Mount & Housing: Built with an internal N52 neodymium block (shielded to prevent tilt sensor flux drift). Clamps directly onto 2-inch tubular golf cart struts across rough turf without slip or rotation. Dual-injected rubber chassis with IPX5 sealed seams.

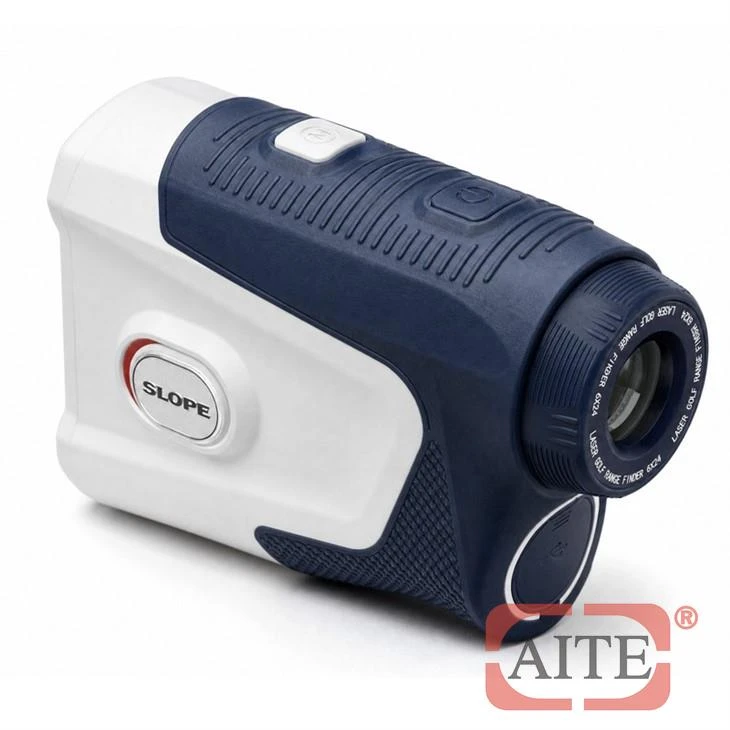

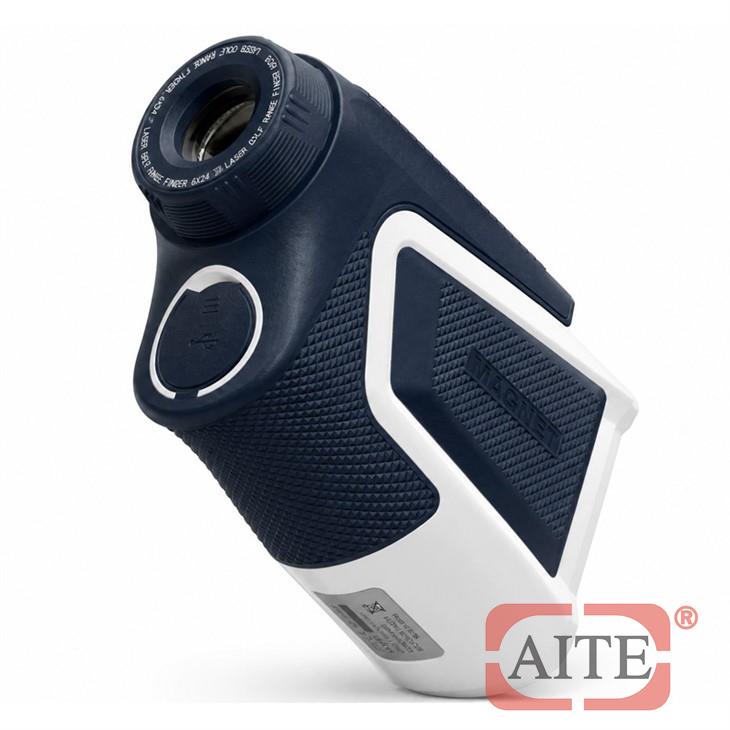

Optics & Display: 6x24mm fully multi-coated (FMC) glass prism. High-contrast dual-color OLED (red crosshairs / green lock flag) or optional backlit LCD configured per regional order requirements. Flag-lock pulse confirmation up to 350 yards.

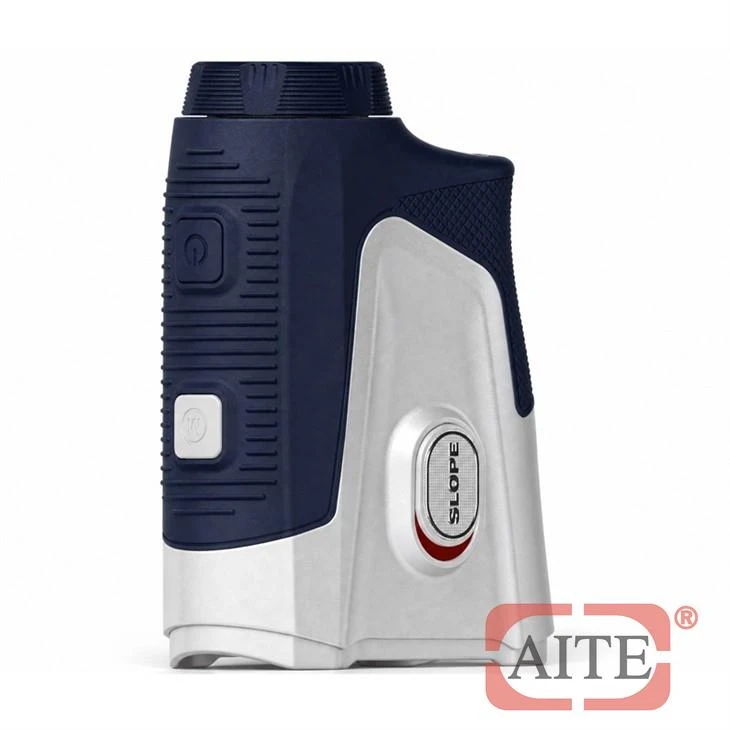

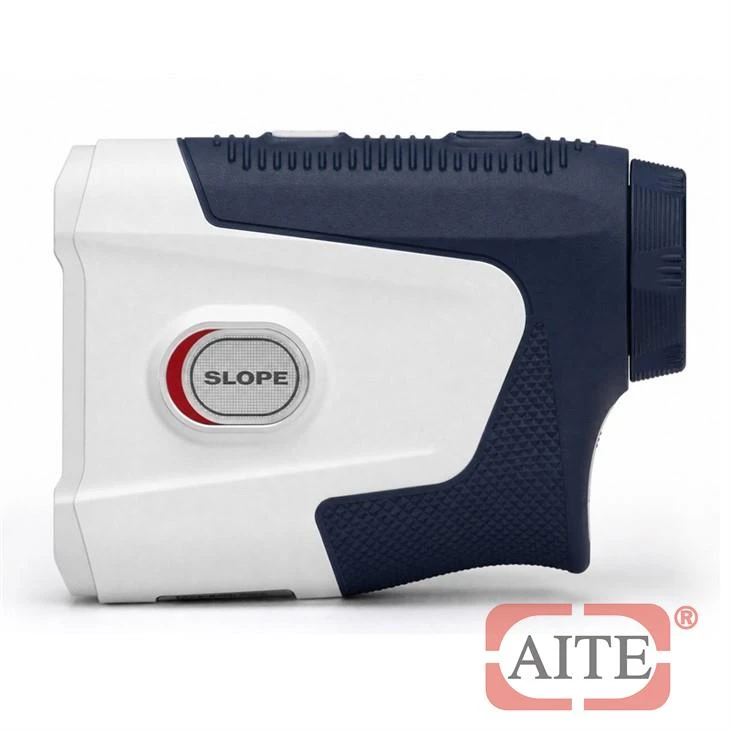

Tournament Compliance (USGA Rule 4.3): External physical toggle mechanically isolates the slope calculating circuit when shifted to 'OFF', triggering a visible external LED indicator for field marshals.
Manufacturing & OEM Specifications:
- Unit FOB Range: $40.00 – $60.00 USD (tiered by order volume & display configuration)
- Custom Branding: Laser engraving / silk-screen logo from 20 units ($20 tooling/setup fee)
- Turnaround: Plain/laser-logo samples in 3–5 working days; mass batches (500+ pcs) in 25–30 days
- Compliance Documents: FDA Accession, CE-RED, FCC Part 15B, RoHS, UN38.3, MSDS air/sea transport reports
Standard Included Accessories: EVA Hard Case, Lanyard, Lens Cloth, Type-C Cable, Manual
| Model 1004H Engineering Specifications | |||
| Measurement Range | 5 – 1200 Yards (Reflective) | Flag-Lock Distance | 350+ Yards (with Haptic Pulse) |
| Accuracy Baseline | ±0.5 Yard at ≤100Y; ±1 Yard at >100Y | Optical System | 6x Magnification, 24mm Objective |
| Display Profile | Dual-Color OLED (Red/Green) / Multi-LCD | Wavelength / Safety | 905nm Class 1 Eye-Safe (IEC 60825-1) |
| Slope Compensation | Continuous Angle Mode + Toggle Switch | Mounting | Embedded N52 Neodymium Magnetic Strip |
| Power Supply | 3.7V Rechargeable Li-ion (USB-C Port) | Ingress Protection | IPX5 Water Resistant |
OEM & Sourcing Notes
Q: What is the procedure and cost for initial custom branding?
A: Provide vector files (.AI or .EPS). Standard laser etching is $20 fixed setup per run (MOQ 20 pcs). Custom molded top-plates or colored rubber injection require 500 pcs MOQ with 15-day tooling setup.
Q: Are export and freight documents included for lithium shipments?
A: Yes. All production batches include UN38.3 test summaries, 1.2m drop test documentation, and valid sea/air MSDS reports under Section II of PI967.
Q: How does the optical calibration process work prior to dispatch?
A: Range accuracy is verified across 15 standard target points in our dark-tunnel collimation facility. Diopter, reticle alignment, and current draw are 100% verified on assembly line end-stations.
Optical Patents & Regulatory Compliance
Chongqing Aite Optical and Electronics Co., Ltd.
Founded in 2002. Operating 5,000 m² ISO 9001:2015 certified manufacturing facilities in Beibei, Chongqing. In-house optical processing, SMT placement, dust-free lens assembly, and environmental testing (400,000 units/year capacity).
Facility: Bldg 24 (B6), No. 105 Semiconductor Industrial Park, Beibei, Chongqing, China
OEM Sales Desk: fredhu@aitegd.com | Direct: +86-18623652325
| 1004H Golf Laser Rangefinder Technical Specifications | |||
| Product Model | 1004H | Display Type | High-Contrast OLED Display |
| Product Brand | AITE / OEM Support | Display Units | Yard / Meter (Switchable) |
| Measurement Range | 5 – 1200 Yards | Pin Seeker Range | 5 – 350 Yards (Flag Lock) |
| Ranging Accuracy | ±0.5Y ±0.2% | Field of View (FOV) | 7.0° Wide Angle |
| Magnification | 6X Optical Zoom | Objective Lens | 24mm Multi-Coated Glass |
| Continuous Scan Mode | Supported | Battery Type | 310mAh Rechargeable Li-ion (>10,000 readings) |
| Chassis Dimensions | 108 × 41 × 76 mm | Device Weight | 175g ± 5g |
| Low Battery Alert | Yes (Screen Indicator) | Housing Colors | Matte Black / Custom Pantone |
| Standard Packaging | Premium Retail Gift Box | Factory Warranty | 2 Years (24 Months) |
